For generations, haymaking operations of all sizes have depended on New Holland small square balers for impressive quality and reliability. Today, the Hayliner® name proudly returns across all models—fusing legendary, time-tested performance and reliability with modern styling.
BALE CROSS SECTION (INCHES)
14 X 18
LENGTH (INCHES)
12 TO 52 - ADJUSTABLE
PICKUP WIDTH (INSIDE) - 65 INCHES
NUMBER OF TINES - 110
STROKES PER MINUTE - 93
PLUNGER RAIL - STANDARD DUTY
HYDRAULIC PICKUP - OPTIONAL
BALE CROSS SECTION (INCHES)
14 X 18
LENGTH (INCHES)
12 TO 52 - ADJUSTABLE
PICKUP WIDTH (INSIDE) - 75 INCHES
NUMBER OF TINES - 156
STROKES PER MINUTE - 93
PLUNGER RAIL - STANDARD DUTY
HYDRAULIC PICKUP - OPTIONAL
BALE CROSS SECTION (INCHES)
14 X 18
LENGTH (INCHES)
12 TO 52 - ADJUSTABLE
PICKUP WIDTH (INSIDE) - 75 INCHES
NUMBER OF TINES - 156
STROKES PER MINUTE - 93
PLUNGER RAIL -HEAVY DUTY
HYDRAULIC PICKUP - STANDARD

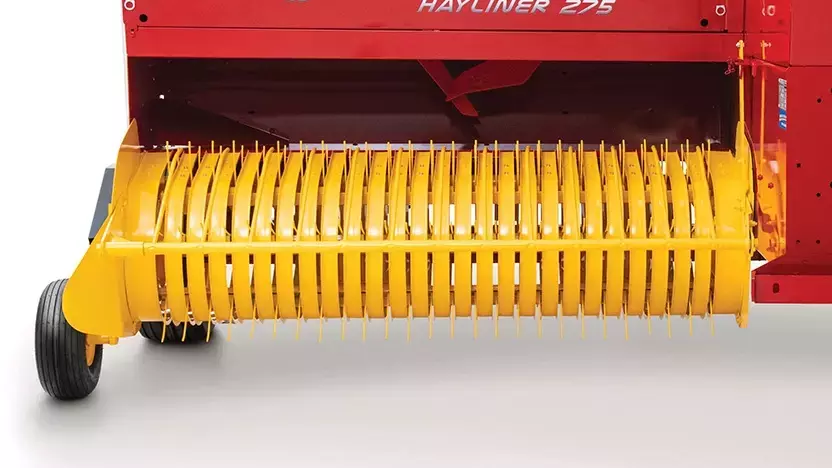

Perfect square bales start with the wide, reliable SuperSweep™ pickup. Curved teeth are made from high-carbon steel alloy with an exceptionally high tensile strength. The 2.6-inch tine spacing means you’ll collect the short, fine crop that other pickups can miss. For trouble-free baling, these pickups are protected against overloads with a belt drive that acts as a slip clutch. Plus, the “lost motion drive” capability means you can back up the baler over windrows without damaging the teeth. Above the tines, a floating windguard helps control the windrow and forms a smooth crop mat for positive feeding.

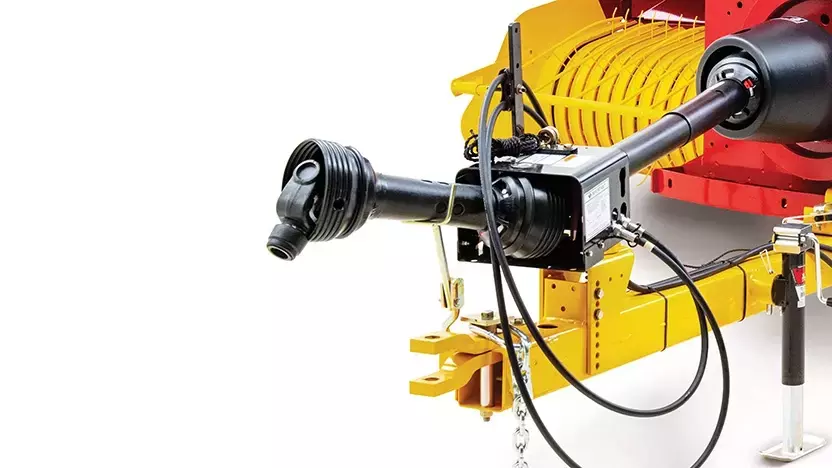

To relieve driveline stress during sharp turns, the exclusive Power-Pivot joint minimizes driveline wear on universal joints and reduces noise. When turning beyond approximately 75 degrees, the Power-Pivot begins to breakaway—maintaining primary PTO driveline equal angles and reducing driveline chatter—without your intervention. When the turn is complete, the system is spring-reset to the normal working position.
The rotary feeding system provides a smooth, even flow of crop through the baler to reduce leaf loss and produce uniform, high quality bales. Crop moves into the bale chamber with heavy-duty, paired, rotating tines and a feeder fork. The system is timed to keep material flowing evenly into the bale chamber .The feeder floor below the tines is replaceable on all models for greater wear resistance, easier serviceability, and to protect your investment.

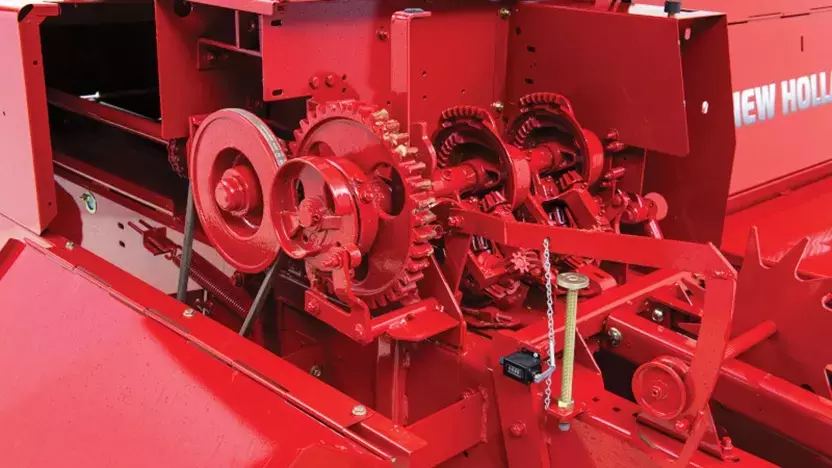

New Holland's gear driven knotters feature simple maintenance and adjustments and are made in New Holland, Pennsylvania, alongside the balers. . The standard knotter is equipped on the Hayliner 265 to deliver reliable tying, while maintaining an economical price point. The Hayliner 275 and Hayliner 275 PLUS are both upgraded with the heavy-duty split-frame knotter for easier servicing, impressive reliability and professional-grade performance.

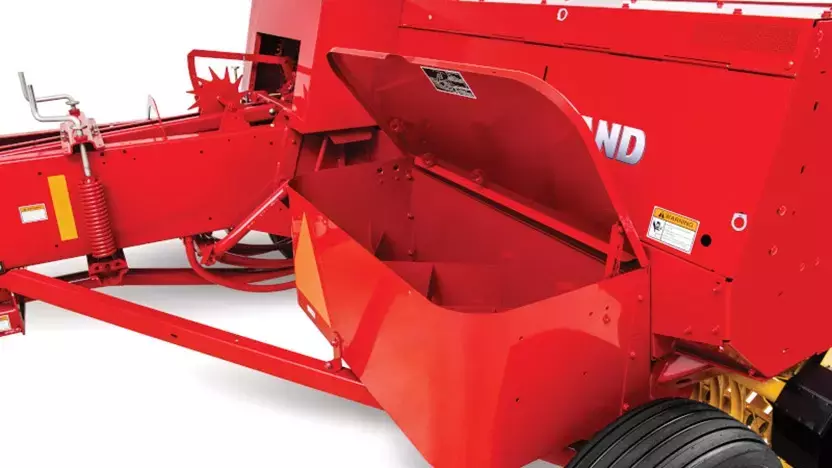

the twine or wire box is conveniently located at the rear of the baler. A hinged steel lid keeps the inside clean and dry. The twine box on a Hayliner 265 has capacity for six standard twine balls, while the Hayliner 275 and Hayliner 275 PLUS have boxes with capacity for eight twine balls to keep you baling longer. The Hayliner 275 PLUS can even incorporate large twine balls.
